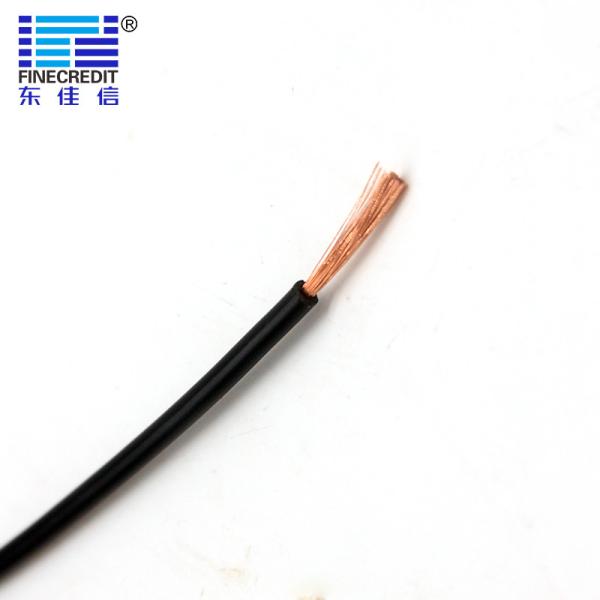

1.5mm 2.5mm 4mm 6mm PVC Flexible Copper H07V-K
| Product name | H07V-K/RV |
| Color | Red Yellow Blue Green Black |
| Material | PVC Copper |
| Rated Voltage | 300/500V 450/750V |
| Packing | 100m/roll |
| Size | 1.5mm2 ,2.5mm2M 4mm2 ,6mm2 ,10mm2 ,16mm2 ,25mm2, 35mm2 |
| Temperature rating | 70℃ |
▼ Standards:
International:IEC 60227
National:EN 50525-2-31:2011
▼ Electrical characteristics:
Rated voltage Uo/U (Um):450/750V
Test voltage:2000 V
▼ Product advantages:
 | PVC jacket new recyable meterial durable&flexible |
 | flexible high flexibility and bending resistance |
 | Bare Copper high purity oxygen free copper. |
▼ Technical parameters:
| Cross section of conductor(mm²) | Conductor structure(mm) | Insulation thickness(mm) | Approx. cable diameter(mm) | Max resistance of conductor at 20℃ (Ω/km) |
| 1.5 | 30/0.24 | 0.7 | 3.0 | 13.3 |
| 2.5 | 49/0.24 | 0.8 | 3.6 | 8.0 |
| 4 | 56/0.29 | 0.8 | 4.2 | 5.0 |
| 6 | 84/0.29 | 0.8 | 4.95 | 3.3 |
| 10 | 7×11/0.39 | 1 | 6.4 | 1.91 |
| 16 | 7×17/0.39 | 1 | 7.4 | 1.21 |
| 25 | 7×27/0.39 | 1.2 | 9.3 | 0.78 |
| 35 | 14×19/0.39 | 1.2 | 10.5 | 0.554 |
| 50 | 14×27/0.39 | 1.4 | 12.8 | 0.368 |
| 70 | 17×24/0.45 | 1.4 | 14.4 | 0.272 |
| 95 | 23×24/0.45 | 1.6 | 16.4 | 0.206 |
| 120 | 29×24/0.45 | 1.6 | 18.2 | 0.161 |
▼ Packing&Delivery:
We are capable of meeting the most strict delivery schedules according to per purchase order. Meeting the deadline
is always the top priority as any delay in the delivery of cable can contribute to overall project delay and cost overrun.
Cable is supplied in wooden reels, corrugated boxes and coils. Cable ends are sealed with BOPP self adhesive tape
and non-hygroscopic sealing caps to protect the cable ends from moisture. The required marking shall be printed with
a weather-proof material on the outsides of drum according to customer's requirement.
▼ CNAS Laboratory:
3S Safety Cable Advanced Institute of Technology with 7 laboratories, has been established in Finecredit
Group, including Electrical Performance Laboratory, Mechanical Performance Laboratory, Combustion
Test Laboratory, High Frequency Laboratory etc. Equipped with over 50 advanced equipment and technologies.
▼ Company information:
30 years of experience in R & D, production and sales of wire and cable.
Invest 200 million to build a modern industrial park, covering an area of 65000 square meters.
Annual revenue is about 500 million US dollars.
CNAS laboratory, more than 100 testing reports.
Products are widely used in real estate, municipal, industrial support, mobile communications etc
